Supports 8 ArtNet universes, total 4096 channels.

Serial connection possible, which can control 32768

universes, a total of 16777216 channels.Ethernet I/O

based on high speed switch, without linking

delay.Compatible with the following protocols: ArtNet, DMX

512 and RDM.It is used for extending the DMX output port

of Tiger touch and MA Console.The 8 DMX ports can all

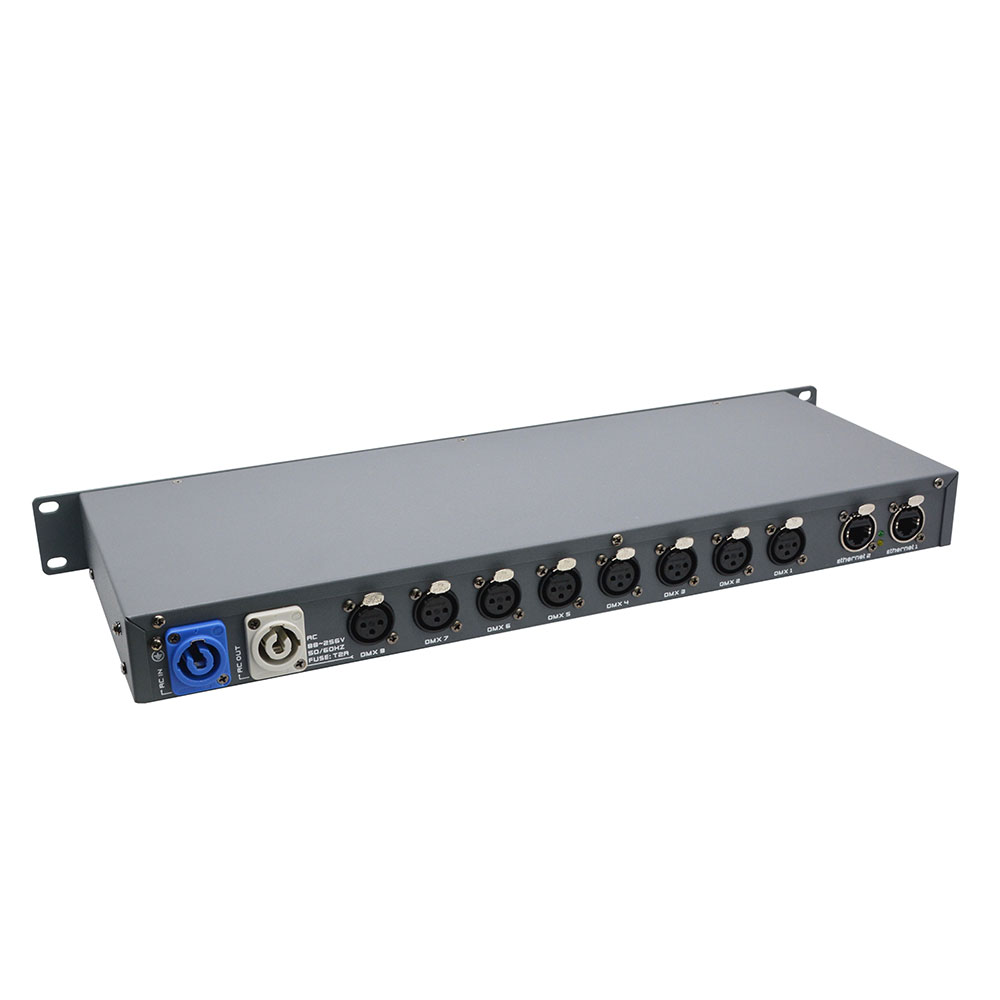

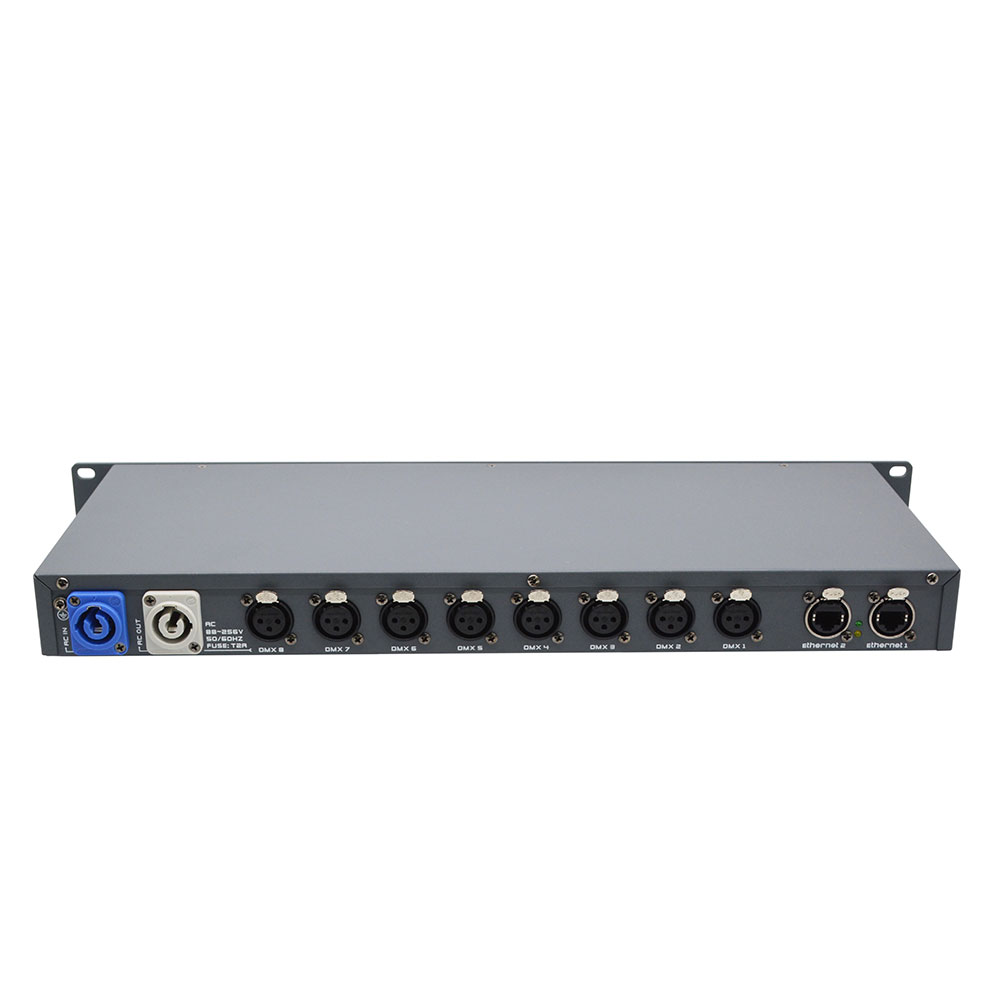

be configured as inputs or outputs.DMX ports: Neutrik

3pins XLR (Option: 5 pins XLR ).

100% electrical isolation between all in/outputs: problems

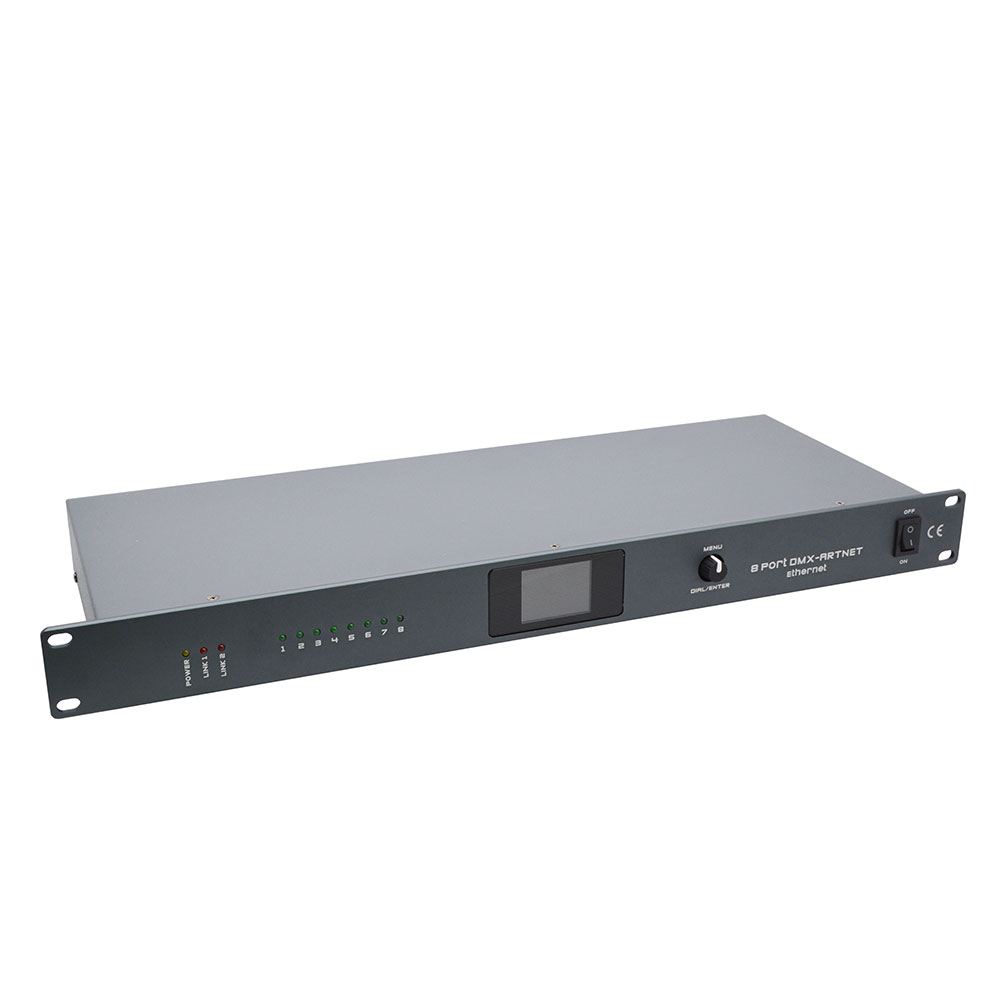

on 1 port will not influence the other ports.TFT display

shows parameters.LED indicators for each input and output.

Wide input stable electric power supply, suitable for

voltage input of different countries. Voltage: AC88～256V, 50/60Hz
